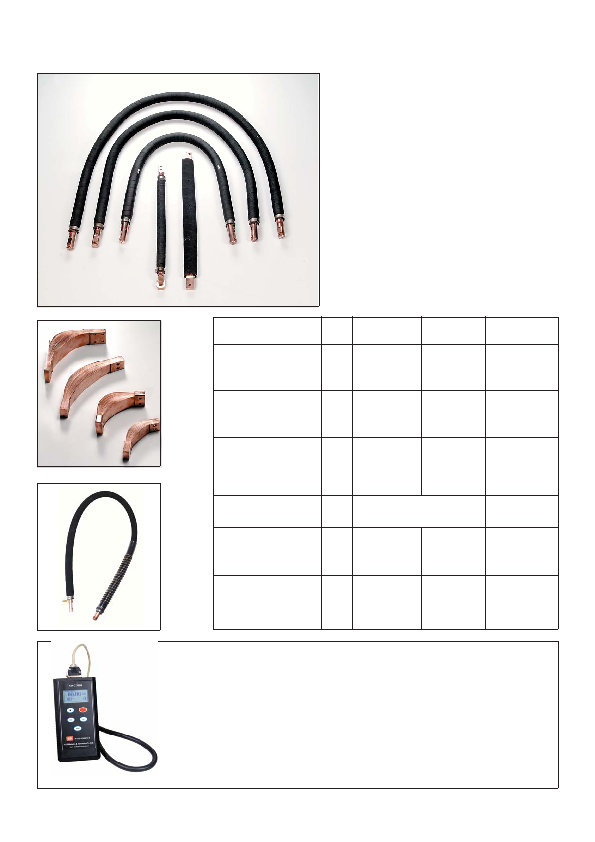

KICKLESS CABLES, JUMPER CABLES & SHUNTS
Kickless Cables
Features :
No noticeable pulsation or “kick”
Wires cannot melt out during brief overload
Improved Flexibility
Reduced heat generation
Terminals soldered and screwed
Longer working life
Low Electrical Resistance
Reduce volts drop and lower transformer KVA/
Primary demand.
Low impendence
Reduced cost per weld - a true measure of
cable cost.
Balanced positive and negative water-cooling
distribution
6 core wire (3 positive & 3 negative) for better
flexibility
WELD CHECKER
(AC & DC) Features:
A hand held, battery powered weld analyser is, a sophisticated instrument to fulfill the demands
of measurement, accuracy and weld quality analysis of today’s welding technology.
Easy operation setup, highly presentable data, and analysis of the weld, to full depth, makes it
the most suitable unit to fulfill these demands.
Battery powered with Auto-Off.
Weld analysis up to every half (10 ms.) cycle.
Measures weld current, weld time (cycle/ms), conduction angle, No. of pulses in the weld.
Measurement data of last 1000 welds, is saved on the main part of a measuring instrument.
For Detailed features please refer separate catalogue.
Items
Cable 150 SQ 200 SQ Remarks
(300 MCM) 400 (MCM)
Impedance (25º C 50HZ)
2.0 m 480 ± 15 µ
O
358 ± 20 µ
O
2.4 m 593 ± 15 µ
O
445 ± 20 µ
O
3.0 m 735 ± 15 µ
O
546 ± 20 µ
O
Resistance
2.0 m 475 µ
O
355 µ
O
2.4 m 587 µ
O
440 µ
O
3.0 m 729 µ
O
546 µ
O
Reactance
2.0 m 69 µ
O
46 µ
O
2.4 m 84 µ
O
66 µ
O
3.0 m 93 µ
O
80 µ
O
Cooling Water Quantity
9L/min
Temperature Rise
2.0 m 45º C / 5900A 45º C / 6800A
2.4 m 45º C / 5400A 45º C / 6200A
3.0 m 45º C / 5000A 45º C / 5700A
Total Weight
2.0 m 10.4 Kg 13.2 Kg
2.4 m 12.2 Kg 15.3 Kg
3.0 m 14.0 Kg 17.8 Kg
Test method by
JIS C9318
Pressure Loss
1.0kg/cm
2
Measured
by
Calculation
Specifications - Kickless Cables
7
